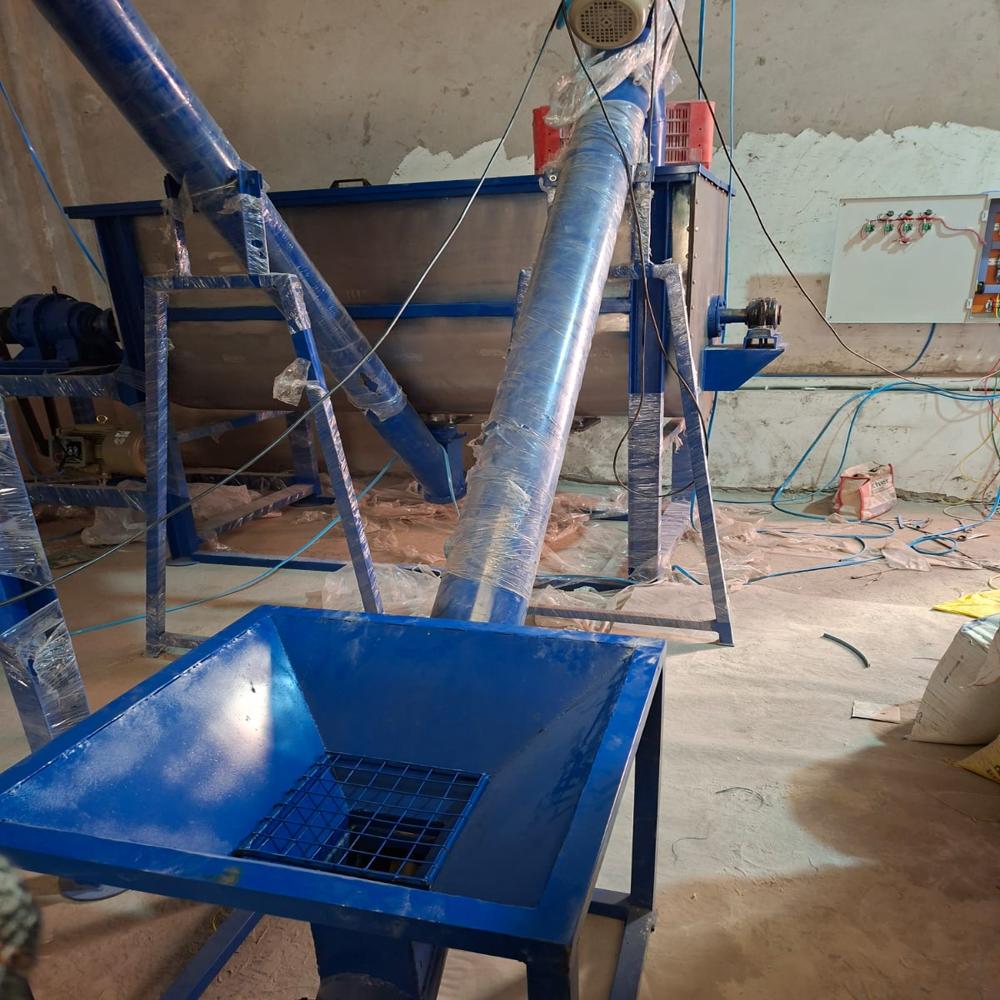

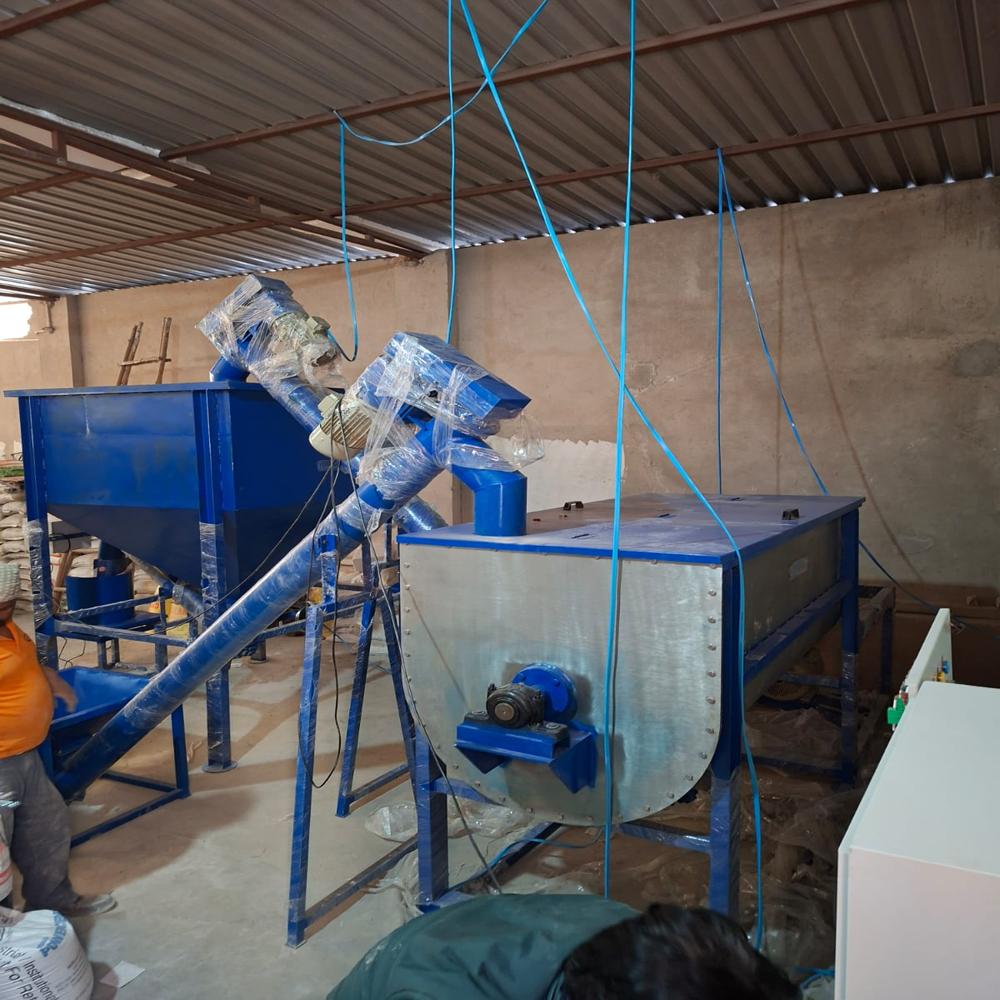

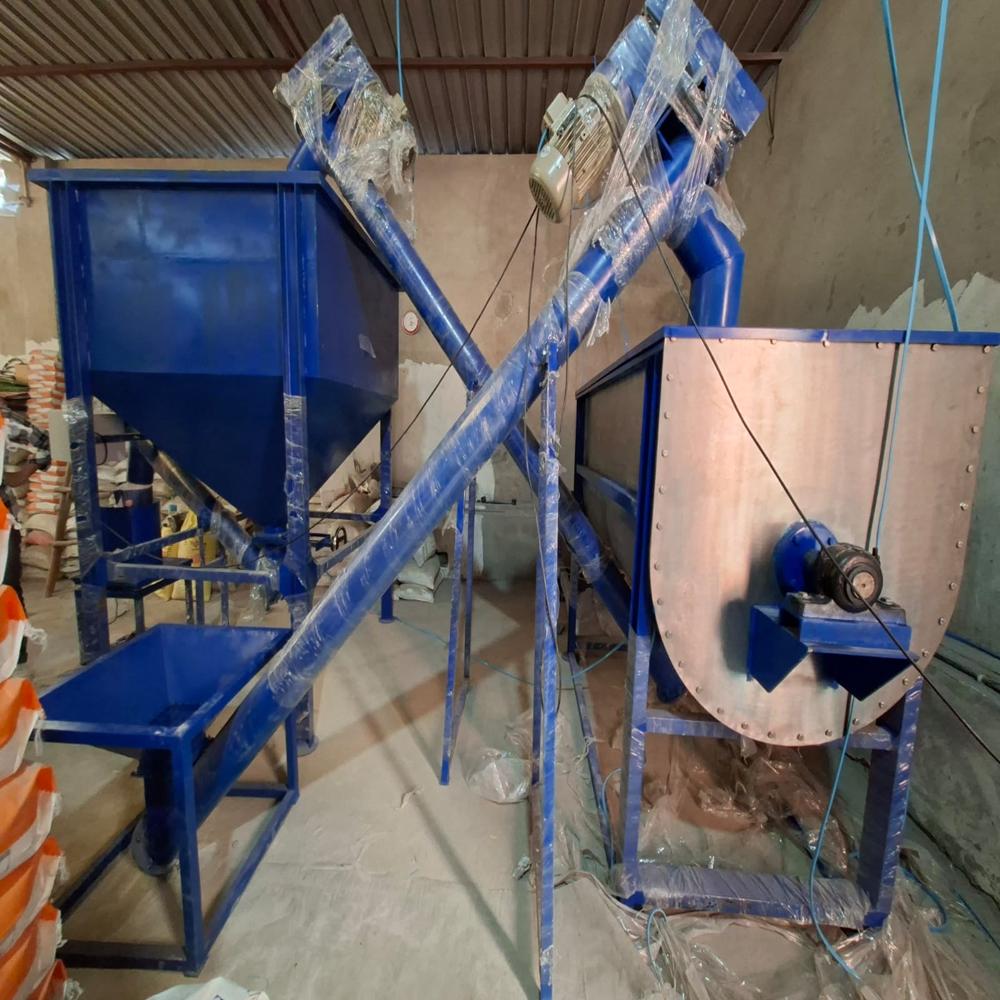

Automatic Tile Adhesive Making Plant

Automatic Tile Adhesive Making Plant Specification

Shape
U-SHAPE

Phase
3 phase

Diameter
- Foot (ft)

Product Type
Tile Adhesive Making Plant

Material
Steel Alloy

Type
Other

Capacity
1 Ton

Weight (kg)
1600 Kilograms (kg)

Computerized
No

Automatic
Yes

Touch Screen
No

Control System
Other

Surface Treatment
Other

Drawing
2D

Voltage
440 Volt (v)

Dimension (L*W*H)
30*12*8 Foot (ft)

Feature
Stable Operation, High Performance, ECO Friendly, High Efficiency, Low Noise, Lower Energy Consumption, Simple Control

Color
grey

Warranty
1 year

Automatic Tile Adhesive Making Plant Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cheque

Supply Ability
15 Units Per Month

Delivery Time
25 Days

Sample Available
Yes

Packaging Details
LOOSE PACKING

Main Domestic Market
All India

Certifications
NO

About Automatic Tile Adhesive Making Plant

An Automatic Tile Adhesive Making Plant is an industrial system designed to automatically produce dry-mix tile adhesive by accurately batching, mixing, conveying, storing, and packing raw materials. These plants are widely used to manufacture cement-based tile adhesives for wall and floor tile installation in residential, commercial, and industrial construction.

Main Components

Raw Material Storage System
- Cement silos
- Sand storage bins
- Additive storage hoppers
- Screw conveyors and bucket elevators
Automatic Batching System
- Weighs cement, sand, and chemical additives according to preset formulas.
- Controlled by a PLC-based automation system for high accuracy.
Mixing Unit
- High-efficiency dry powder mixer (ploughshare, ribbon, or paddle mixer).
- Ensures uniform blending of all ingredients.
Material Conveying System
- Transfers materials between storage, batching, mixing, and packing sections.
- Uses screw conveyors, pneumatic conveyors, or bucket elevators.
Finished Product Storage
- Mixed tile adhesive is stored in finished-product hoppers before packaging.
Automatic Packing Machine
- Fills and seals bags (typically 2050 kg).
- Can include valve bag or open-mouth bag packaging systems.
Dust Collection System
- Bag filters and dust collectors minimize environmental pollution and material loss.
PLC Control System
- Centralized operation through a touchscreen interface.
- Monitors production parameters, recipes, and equipment status.

Manufacturing Process

Raw materials are loaded into storage silos and bins.
The batching system measures each ingredient according to the selected formulation.
Materials are conveyed to the mixer.
The mixer blends the ingredients into a homogeneous tile adhesive powder.
Finished material is transferred to the storage hopper.
The packing machine fills, weighs, and seals the bags automatically.
Packed bags are ready for storage and shipment.
